Quick Details

  • Place of Origin: Henan, China (Mainland)
  • Brand Name: Jinrui
  • Model Number: SJY SJG
  • Lift Mechanism: Scissor Lift
  • Lift Drive / Actuation: Hydraulic
  • Power: 2.2kw/3kw
  • Rated Loading Capacity: 100-1000kg
  • Min. Lifting Height: 3m
  • Max. Lifting Height: 18m
  • Table Size: 1700*1080mm or more
  • Overall Dimensions: 1820*1400*1180mm or more
  • Weight: 660KG-2800KG
  • Certification: CE ISO SGS GOST
  • Warranty: 1 Year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Other Country: Henan, China (Mainland)
  • Prodct name: Hydraulic lift platform
  • Weight overload protection device: Include
  • Emergency stop system: Include
  • Main lifting height: 10m,11m,12m
  • Working duty: A3
  • Industry voltage: 220V,380V,415V,440V,480V
  • Painting colour: as your requirement

Packaging & Delivery

Packaging Details Electric parts are packed by strong plywood crate, others packaged in polythene woven cloth or as your requirement.
Delivery Time Shipped in 0 days after payment



Product Description
                                   Thoughtful aftersale service, 10 years  long warranty



1.Product Outline








Hydraulic lifting platform is a kind of mul-functional lifting handling machinery. It has two mainly types according to different sites. One is mobile lifting platform with four wheels, it takes storage battery as the power source, and makes low noise and no emission when working, so it can be used outfoor and indoor occasions, such as  hotels, grand hall, sport stadium, large factory, workshops, warehouse, granary,

busrailway stations, hotels,airports, gas station and aerial pipe line.

The other type is fixed lift platform, it sited into a lift pit. The table of lift is in the same level with the ground which is convenient to move the cargo onto it. In this way it also called freight elevator.



2.Product Details








Features

  •  Control voltage is DC24V.Keeping working person safe.
  •  Electrical control box is water-proof design.
  •  Installing Emergency button, can keeping working person safe.
  •  Self-locking function will work when electricity is suddenly cut off.
  •  System have Emergency drop valve, which can let platform down safely. When electricity is suddenly cut off.
  • Four telescopic supporting legs in bottom which can keep machine stable fixed lift platform.

Performance

  • Easily passed: Compact body can easily through a single doorway and double doorways, no trace of solid tires.
  • Special places: Low noise electric scissor aerial work platforms for such buildings, shopping malls,hotels, schools and other noise-sensitive environments without noise.
  • Compact and flexible operation: Most mechanical systems with zero within a radius of turn, flexible operation in crowded construction sites, elevators and narrow channels. a person can easily complete the aerial work freely.

Specification

Height (m)

Capacity(kgs)

Table size(mm)

Overall dimension(mm)

Power (kw)

Weight (kgs)

SJY0.3-4

4

300

1700*1080

1820*1400*1180

2.2

660

SJY0.3-6

6

300

1700*1080

1820*1400*1280

2.2

750

SJY0.3-8

8

300

1800*1060

1900*1380*1460

2.2

850

SJY0.3-10

10

300

1920*1200

2040*1580*1660

2.2

1300

SJY0.3-12

12

300

2370*1300

2510*1630*1980

2.2

1420

SJY0.3-14

14

300

2650*1300

2800*1660*1980

2.2

1800

SJY0.3-16

16

300

2650*1340

2800*1600*2130

3

2800

SJY1.0-8

8

1000

1940*1300

1920*1630*1980

2.2

1050

SJY1.0-10

10

1000

1920*1300

2060*1630*1980

2.2

1500

SJY1.0-12

10

1000

2400*1340

2530*1630*2000

3

1700

3.Product Structure








Safety features

  • Control Device:Calling box (installed on the wall nearby) and remote controller(Extra optional).
  • Emergency Stop:The lifting and lowering process can be stopped immediately by pressing the emergency button.
  • Safety Interlock: Lock the platform when it is out of control.
  • Emergency lowering:The platform can be lowered by opening hydraulic valve manually or rolling screw rod.
  • The lift has hydraulic overload protective organization to ensure that equipment will not lift when the load beyond its rated load capacity.
  • The machine equipped single control solenoid valves to prevent the platform dropping if power failure. You can open the manual dropped valve to lower the platform to the home position.

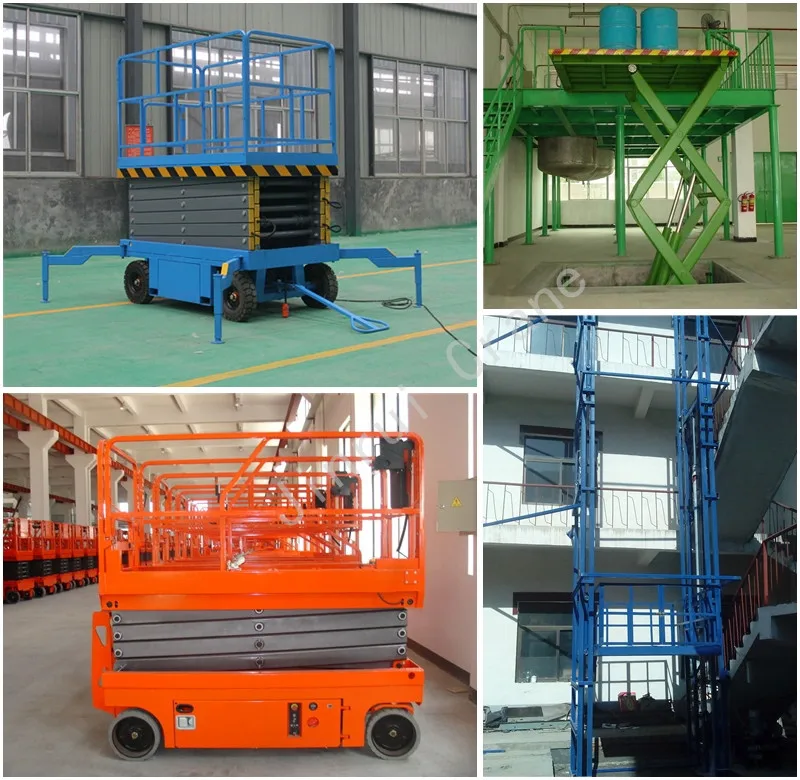

4.Product Other Types




Company Information
                                   Thoughtful aftersale service, 10 years  long warranty



1.About Jinrui




1. Factory establish in -- 1981. With 34 years fabrication experience, we are professional.

2. Factory area -- 600000m². Large production capacity, help customer improve the factory construction time and saving more cost.

3. Exporting to more than 50 countries. Rich exporting experience make us provide a better exporting service, and help our customer avoid more troubles during every step.

4. Rich exprience cooperate with different application industry -- we can provide more reasonable suggestion during the process of solutions confirm. Help our customer get a best money performance equipment.

5. 2 years warranty, no worry about the aftersale service.

6. Provide Overseas installation. To make sure the crane can service better for the working.


 2.Certificates








3.Packing and shipping



1. Delivery time

  Within 7  business day after the receipt of deposit.
2. Packaging

 Wood case for electric parts, accessories;large sections will be loaded onto bulk cargo ship after packing.

3. Payment terms

   FOB, CFR and CIF are common trade terms. We can accept payment terms: TT, L/C, west unit, DUP, DUA and other.

4. Installation

   the installation team can be sent to local site to install for customer.

5.Warranty

   We'll be responsible for maintenance if our product itself has quality problem during one year after receiving.





4.Our Service



1. Customers Visit:

       a. We will help customers apply the offical invitation letter and booking the hotel.

       b. Give the resonable suggestion, we will company with you.

       c. If you are interested in China, we will arrange to visit China.

2. Product Services:

       Design---Production---Debugging---Inspection---Shipment---Installation

3. Gereral Service:

a. 14 months warranty when products leave the factory, or 12 months warranty after installation and

commissioning in addition to the human damage factors.

b2 years spare-parts provided for better maintenance.

c. Professional technical staffs provide installation, commissioning and training services.

d. Delivery with English user manual, parts manual, product certification and other relevant certificates.

e. Technical advisory for any time.


5.Culsultant Guide








Please tell us your specification according the above insruction, if difficult to you, kindly see the

below the basic parameters or tell us your questions. We will choose a suitable products for you.

Or Just tell me where you will use, then it is my turns.



 Load capacity:   (2t, 5t, 10t, 16t, 20t, .....)

• Lifting height:    (2m, 3m, 4m, 5m, 8m.......)

• Plantform size:   ( 1700*1080mm, 1800*1060mm..........)

• Working voltage: ( 3-Phase 380V 50HZ, 3-Phase 440V 50HZ......)

.
